Home > Products > U Type Wire > 1.00mm Pitch Dual Row Dual Plastic Straight Type

1.00mm Pitch Dual Row Dual Plastic Straight Type

1.00mm Pitch Dual Row Dual Plastic Straight Type

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CIF,EXW
    Min. Order: 1000 Bag/Bags
    Delivery Time: 14 Days
    Packaging: bag packing,Tube packing, reel packing
    Productivity: 10000K/month
    Brand: ANTENK
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 10000K/month
    Certificate: ISO9001
    HS Code: 8536909000
    Port: SHENZHEN,HONGKONG

Basic Info

Model No.: PHBS04-XXD-ACB-XXX

Product Description

Antenk electronics in shenzhen launches a 1.00 mm Pitch dual row, dual plastic, straight wire connector, its product Max poles: 2*1P to 2*50P, Insulator Material:PA6T, PA9T, LCP, PIN available with tin plated, gold plated 1 u", 3 u", 5 u",10 u", 15 u" and 30 u"

SPECIFICATIONS:
Current Rating: 0.75Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL94V-0,Color:Black

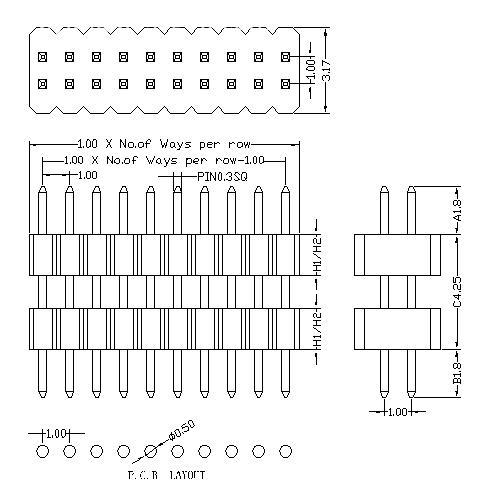

1.00 mm Pin Header Dual Row Dual Plastic Straight Type PHBS04-XXD


ShenZhen Antenk Electronics Co,Ltd



ANTENK Electronics Co., Ltd(with the trade mark of "Antenk") was established in 2004. We specialize in producing precise Board to Board,Automotive Connector,Terminal Block Series,Battery Connector,Din41612 Connector,battery holders Series,Male Pin Headers Series,Female Pin Headers Series,Modular Jack RJ45 Series,D-Subminiature Connectors Series,Box Header Connector,IDC Socket Connector,SCSI Connectors Series, Wire to Board Connector, Modular Jack, Terminal Block, Wire Harnesses,Cable Assemblies, I/O Connector. Through 15 years of development, we have grown into a leading manufacturer in Asia. We have passed ISO9001:2008 and ISO1400 Certification as well. Mostly of our products have been approved by UL, SGS and RoHS. Since its foundation, ANTENK sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, by the precision high-speed punch molding, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team. The factory, with 3000M² floor plant, has about 100 employees and owns 15 sets precision molding devices, 4 sets Japan & Taiwan precision high-speed punch machines, more than 300 sets Various types of plastic molds and more than 100 sets hardware terminal molds, 10 sets laboratory testing equipments and over 50 sets machines for automatic assembly that can provide customer with over 10 types and 10,000 different specification connectors parts, company have import-export handles rights. And up to 70% products are exported to Euro-American countries. Mainly customers: Foxconn, Flextronics, Molex, Amphenol, FCI, Siemens etc. famous companies.
