Cheap Galvanized W/d Palisade Galvanised Metal Fencing
Product Description
Products Description

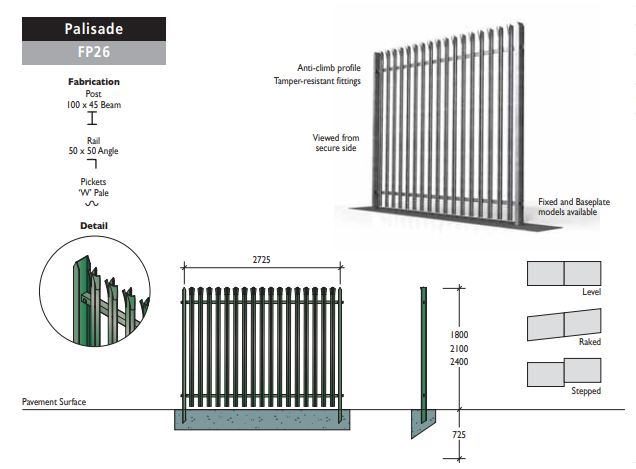

Steel Palisade Specification | ||||||||
Fence Height | Post Dimensions | Rail Dimensions | Support Legs | Corrugated Steel Palisades | ||||
1.2m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
1.5m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
1.8m | 102x44 or 100x55 | 40x40x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
2.0m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
2.1m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
2.4m | 102x44 or 100x55 | 45x45x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
2.7m | 102x44 or 100x55 | 50x50x6mm | 1 | W - 2.0mm or D - 3.0mm | ||||
3.0m | 127x76 | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm | ||||
3.6m | 127x76 | 50x50x6mm | 2 | W - 2.5mm or D - 3.5mm | ||||
Standard Configuration Type B | ||
Post | Size: 100 x 55mm/100 x 44mm | |
Available with base plates for bolt-down or cranked over walls. | ||
Bracket extensions available for Barbed Wire or razor wire. | ||
Rails | Size: 40mm x 40mm/ 45mm x 45mm/ 50mm x 50mm | |
Steel angle rails punched for pale attachment. | ||
Connected with 12mm square cup bolts and anti-vandal permacone (snap-off) nuts. | ||

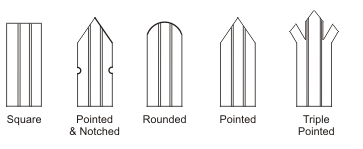

Pale Tops | High security style split-tripple point, or single point. | |
Safety style rounded, or rounded and notched top. | ||
Fittings | Rails and pales are fitted using rivets & collars, or rounded bolts with permacone nuts (snap-off / anti-vandal). | |
Connection Plates | Linking the steel rails together. | |
Application
For Highways For House
For Parking Lots For Sports Grounds
